Monte Carlo Simulations

Chromo leverages Monte Carlo (MC) sampling to obtain ensembles of near-equilibrium polymer configurations. During MC sampling, random configurational changes to the polymer are proposed. We have implemented five types of configurational changes:

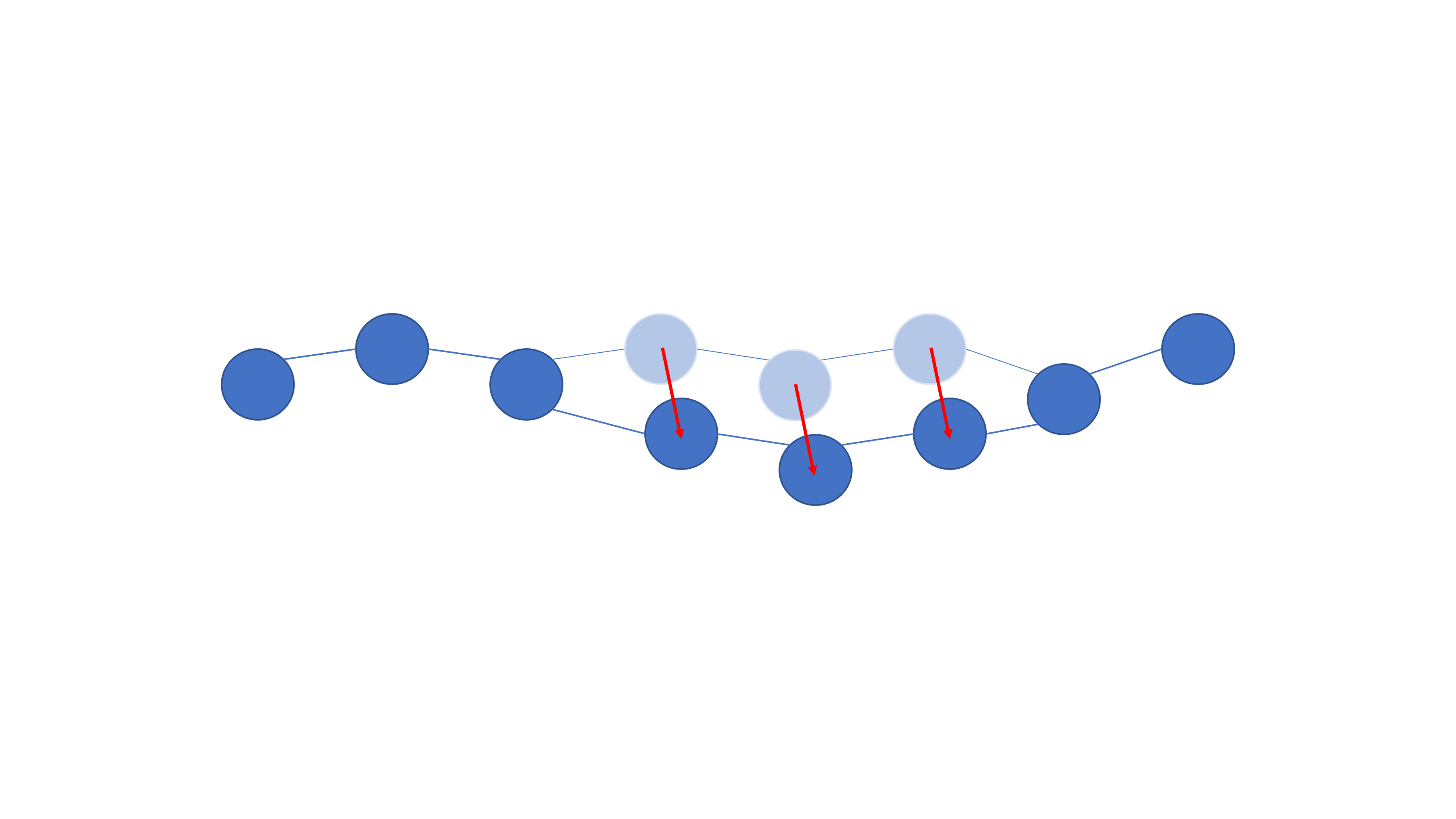

  • Slide: Translation of a continuous segment of beads in a random direction

_images/slide.png

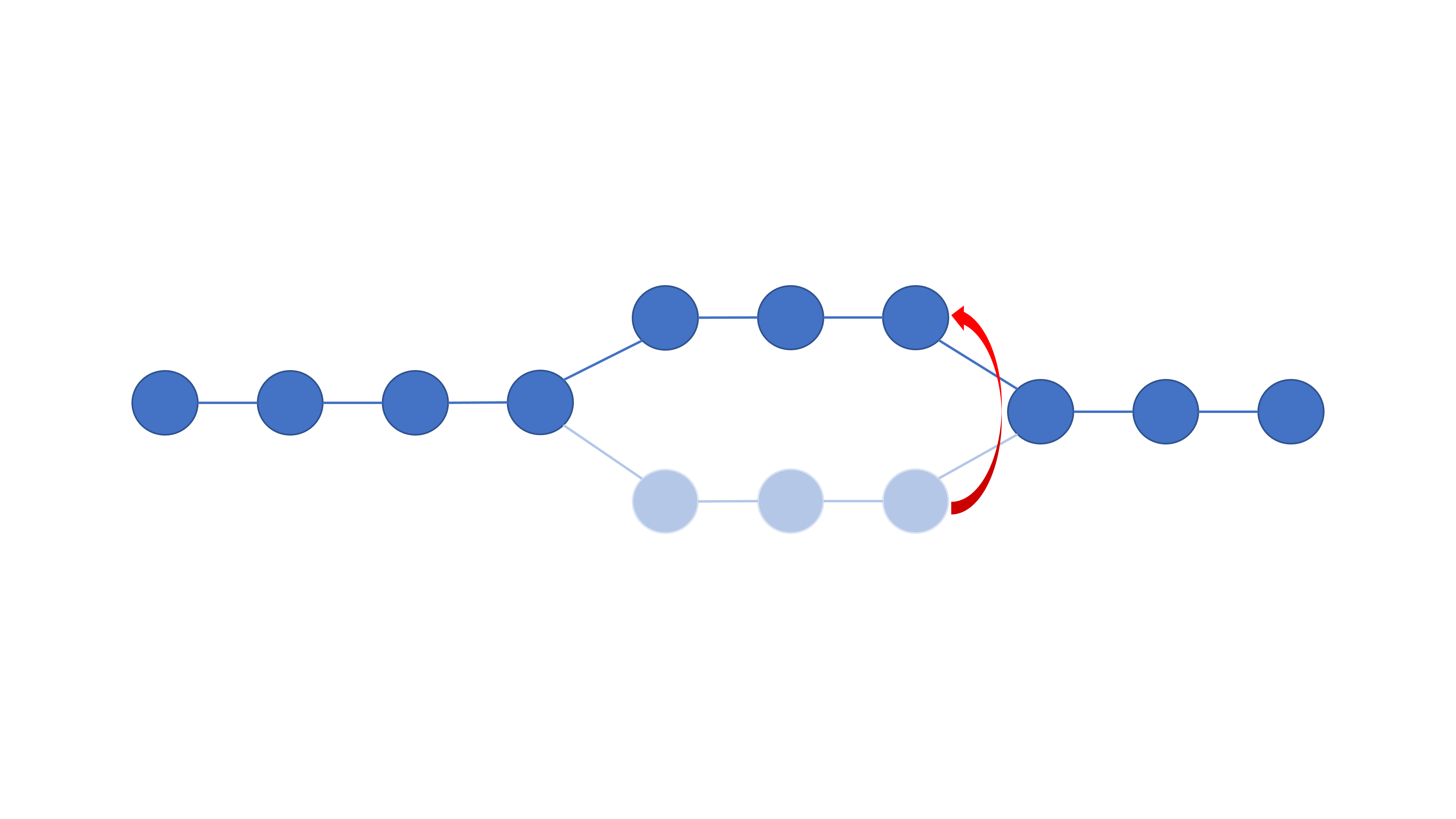

  • Crank-Shaft: Rotation of an internal segment of the polymer about the axis containing the segment

_images/crank_shaft.png

  • End-Pivot: Rotation of a segment on one end of the polymer about an arbitrary axis

_images/end_pivot.png

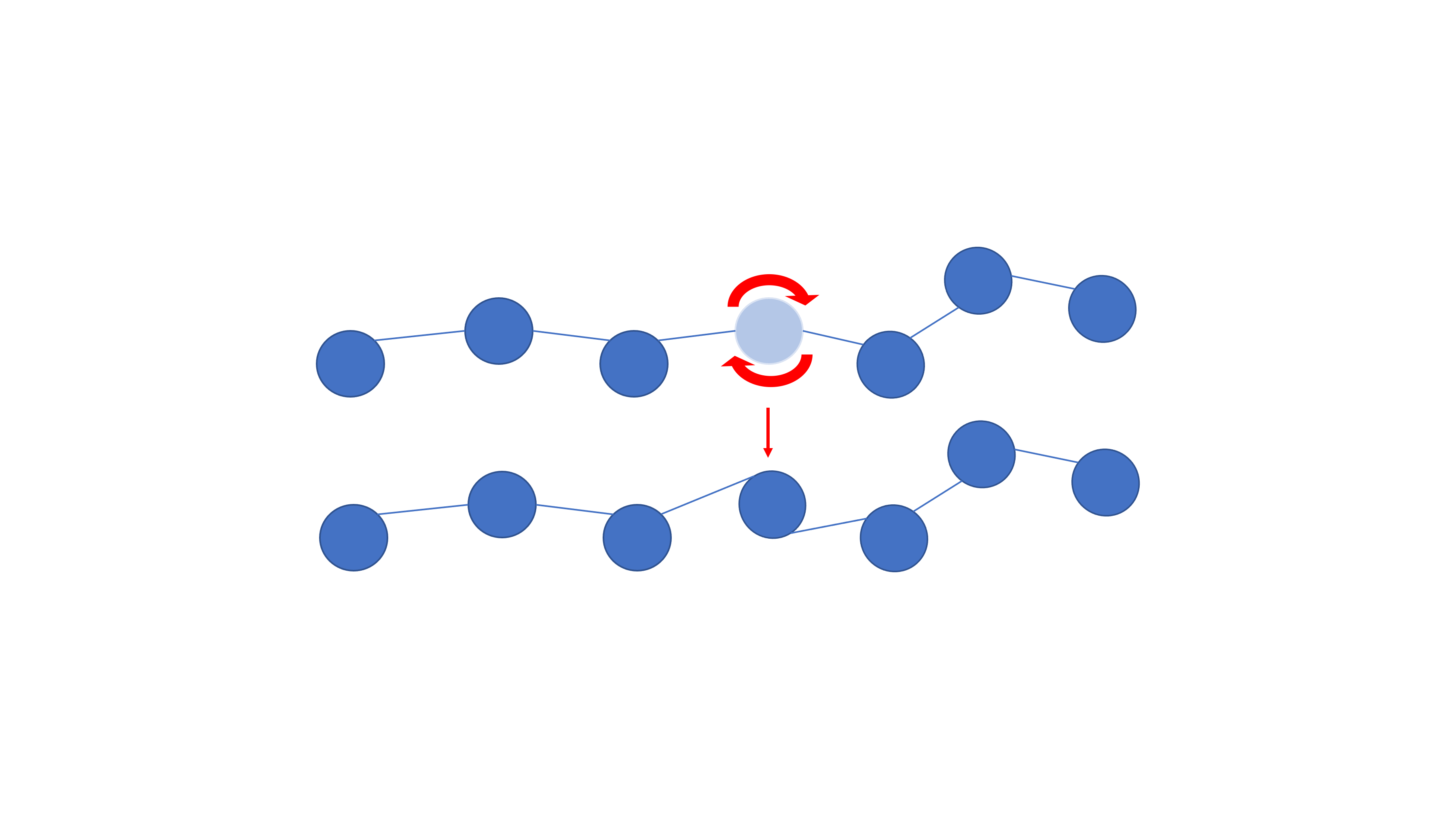

  • Tangent Rotation: Rotation of the tangent vectors of random beads in the polymer

_images/tangent_rotation.png

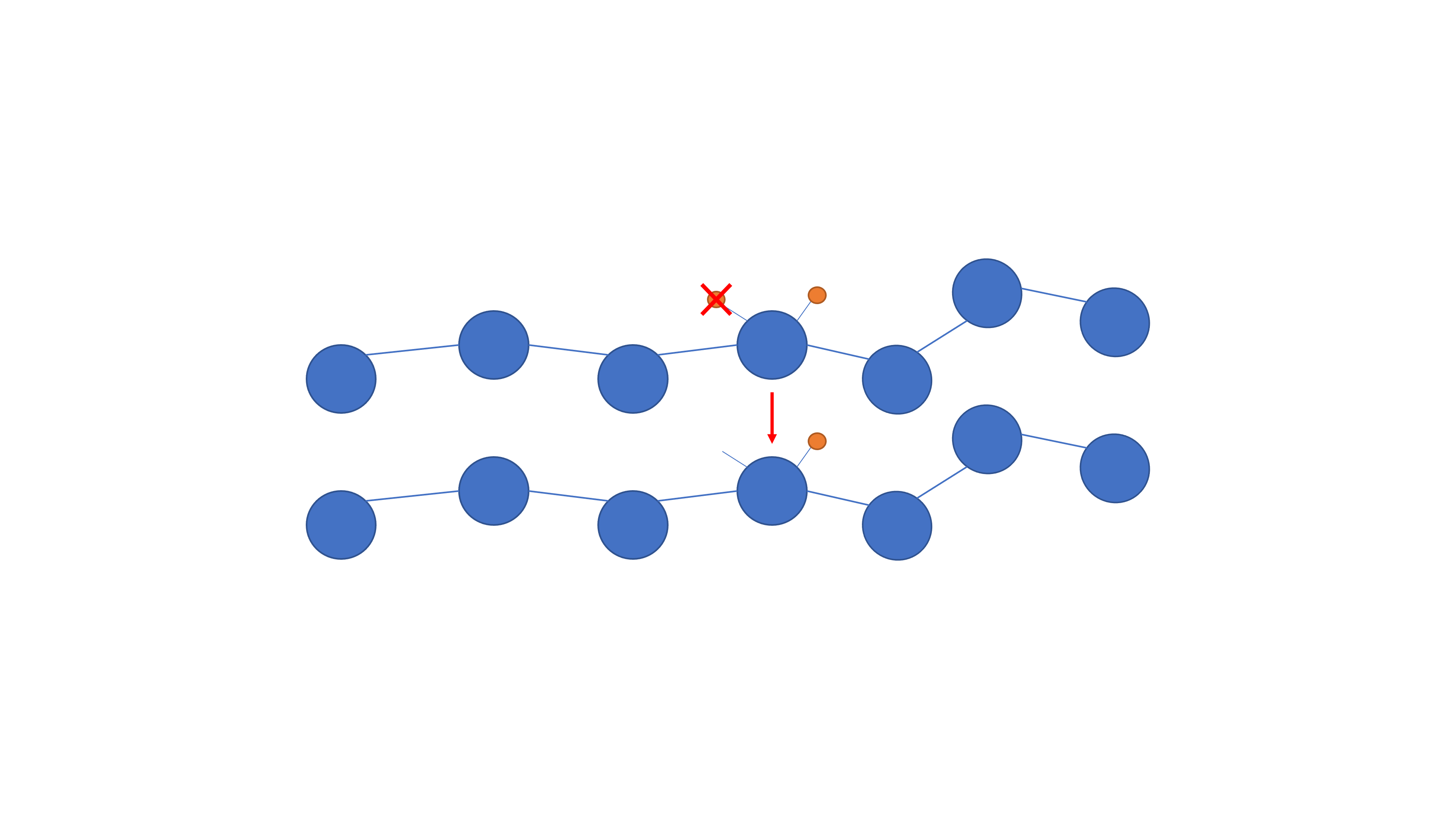

  • Binding State: Random changes in HP1 binding state

_images/binding_state.png

After applying each configurational change to the polymer, we determine the associated energy change. The energy difference is comprised of two parts: an elastic energy change in the bonds of the polymer and a field energy change accounting for bead interactions. The energy change is accepted or rejected according to the Metropolis criterion; all energetically favorable moves (associated with a decrease in energy) are accepted, and energetically unfavorable moves (associated with an increase in energy) are accepted with exponentially decaying probability. Below is a schematic of how the MC algorithm is used in the context of our simulator.

_images/mc_algorithm.png
